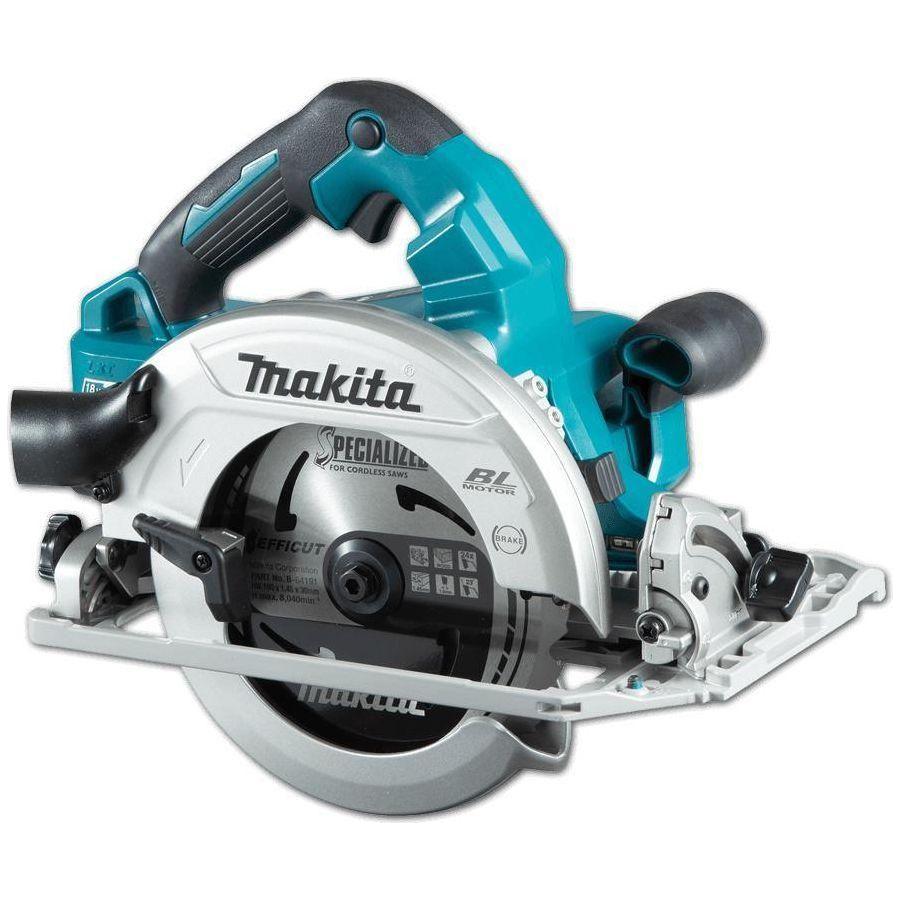

DHS783Z – 190/185mm (7-1/2″/7-1/4″) Magnesium 18V x2 (36V)

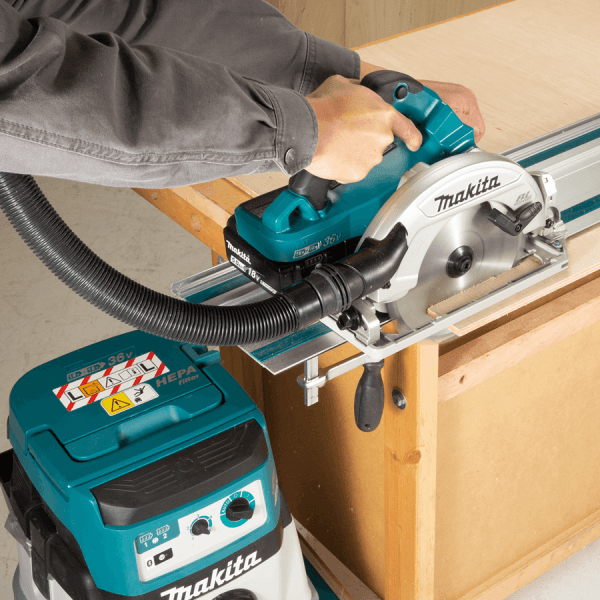

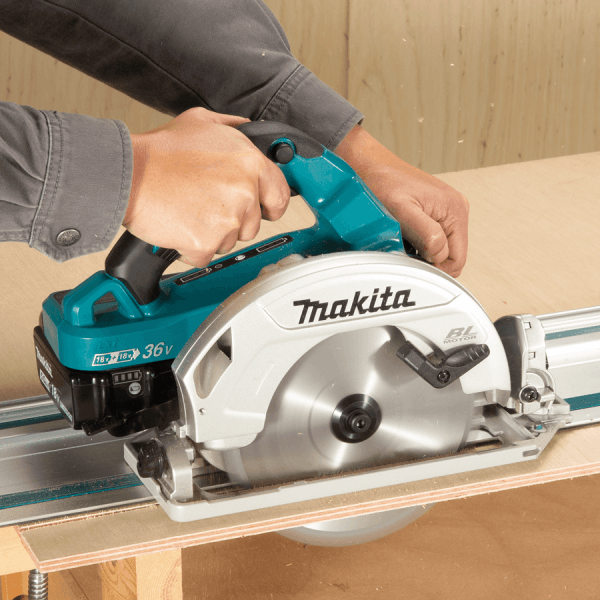

- Compatible with Guide Rail without Adapter, Providing Precision Cutting
- Increased visibility of ink line position
- 6,000 RPM for fast cutting
- 18V solution for corded power demands
- Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
- BL motor delivers 6,000 RPM for fast cutting
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- Large cutting capacity (62.5 mm at 90°) and bevel capacity (0° – 48°) with a positive stop at 45°
- Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
- Automatic torque Drive Technology (ADT) adjusts cutting speed and torque during cut for optimum performance
- Overload alert using ADT lamp
Blade Diameter 190 / 185 mm (7-1/2″ / 7-1/4″)
Hole Diameter 15.88 / 20 / 30 mm (5/8″ / 13/16″ / 1-3/16″)
Max Cutting Capacity 90°: 62.5 / 60 mm (2-7/16″ / 2-3/8″)
45°: 44.5 / 43 mm (1-3/4″ / 1-11/16″)
48°: 42 / 41 mm (1-5/8″ / 1-5/8″)
No Load Speed (RPM) 6,000
Max Output 1,800 W
Vibration Level Cutting Wood: 2.5 m/s² or less
Vibration K Factor Cutting Wood: 1.5 m/s²
Vibration Level Cutting Metal: 2.5 m/s² or less
Vibration K Factor Cutting Metal: 1.5 m/s²
Sound Pressure Level 93 dB(A)
Sound Power Level 104 dB(A)
Noise K Factor 3 dB(A)
Dimensions (L x W x H) 348x210x290 mm (13-3/4″x8-1/4″x11-3/8″)
Net weight 4.5 – 5.1 kg (9.9 – 11.3 lbs.)
TCT Saw Blade, Dust Nozzle, Hex Wrench, Guide Rule, Hook
Lifetime Service Warranty
