It's what's INSIDE that counts.

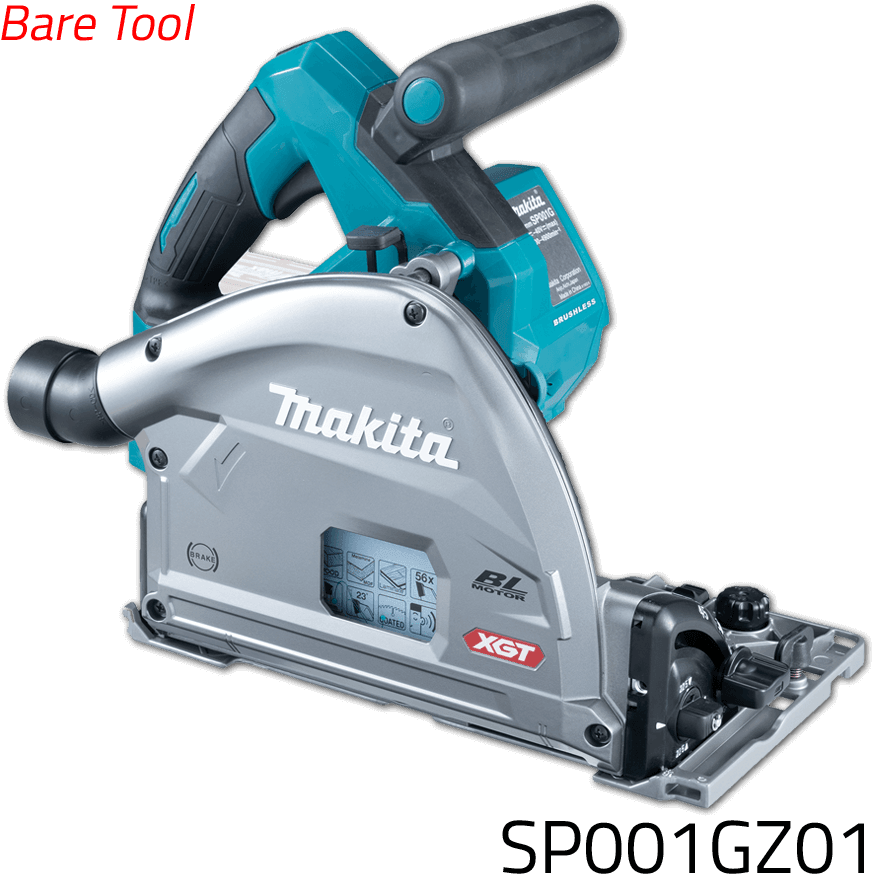

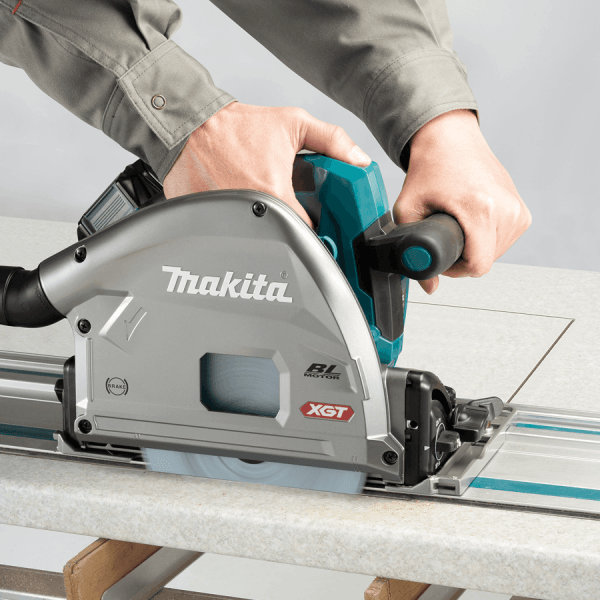

SP001GZ01 – 165mm (6-1/2″) Plunge Cut Saw 40Vmax XGT™ Li-Ion [Bare Tool]
- Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
- Constant speed control provides consistent surface finish
- BL motor delivers 4,900 RPM for fast cutting and ripping
- BL motor with high power to weight and size ratio
- BL motor is electronically controlled to optimize battery energy use for longer run time per charge
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Rotatable dust nozzle; Added two leaf springs enable to twist and lock the nozzle with a click in order to reduce unexpected rotation
- eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
- Large cutting capacity (56 mm at 90º, 40 mm at 45º and 38 mm at 48º) and bevel capacity (-1° – 48°) with a positive stop at 22.5°
- Precision accurate cutting delivers a splinter-free mirror finish
- Depth stopper for scuffing enables to easily cut a preliminary groove at a depth of 2 mm
- Variable speed dial control (2,500 – 4,900 RPM) for optimum performance in a variety of materials
- Electronic soft start feature for smooth start-ups
- Easy to set depth adjustment with large scale
- Magnesium components deliver a well balanced and lightweight saw
- Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
- Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation.
- Electric brake for improved productivity.
- Rubberized handles for added comfort.
- Large rear dust port directs material away from the operator and easily connects to a vacuum system.
- Tip-resistant design minimizes the machine from falling down.
- Onboard hex wrench for fast and easy blade changes.
- Battery protection circuit protects against overloading, over-discharging and over-heating.
- Optional guide rail is attachable without adapter for increased maneuverability
|Blade Diameter||185 mm (7-1/4″)|
|Hole Diameter||European Countries: 30 mm (1-3/16″)|
|North America: 15.88 mm (5/8″)|
|Korea: 19 mm (3/4″)|
|Others: 20 mm (13/16″)|
|Max Cutting Capacity||0°: 65 mm (2-9/16″)|
|45°: 45 mm (1-3/4″)|
|53°: 38 mm (1-1/2″)|
|No Load Speed (RPM)||6,400|
|Max Output||1,400 W|
|Vibration Level||2.5 m/s² or less|
|Vibration K Factor||1.5 m/s²|
|Sound Pressure Level||92 dB(A)|
|Sound Power Level||103 dB(A)|
|Noise K Factor||3 dB(A)|
|Dimensions (L x W x H)||446 x 196 x 270 mm (17-1/2 x 7-3/4 x 10-5/8″)|
|Net weight||5.0 – 5.6 kg (11.0 – 12.3 lbs.)|
TCT Saw Blade, Hex Wrench
Lifetime Service Warranty
