Description
Precision is our Profession

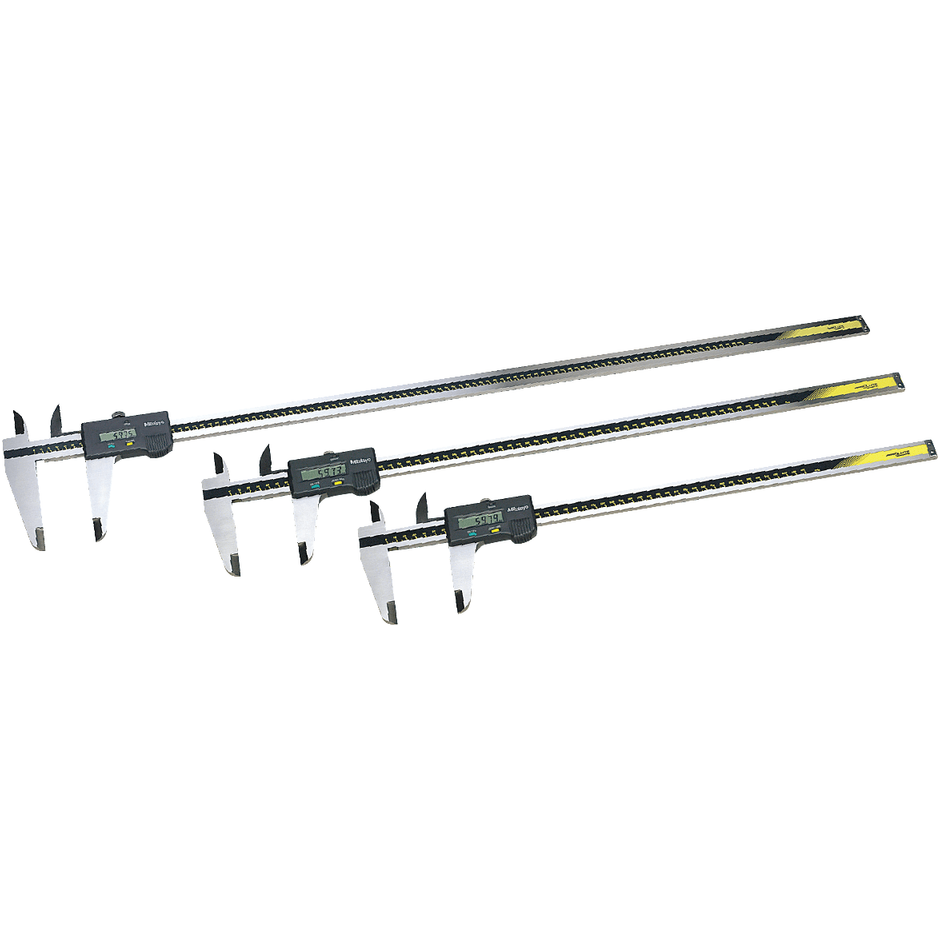

SERIES 500 — with exclusive ABSOLUTE Encoder Technology
A built-in ABS (absolute) scale means that these calipers are ready to use immediately
after power-on without origin resetting - just like using a vernier caliper .
Code | Model | Range | Graduation | Price |
Metric | ||||
500-501-0 | CD-60C | 0-600mm | 0.01mm | 58,700.00 |
500-502-10 | CD-100C | 0-1000mm | 0.01mm | 103,500.00 |
Inches/Metric | ||||
500-505-10 | CD-18C | 18"/450mm | 0.0005"/0.01mm | 54,600.00 |
500-506-10 | CD-24C | 24"/600mm | 0.0005"/0.01mm | 59,200.00 |
500-507-10 | CD-40C | 40"/1000mm | 0.0005"/0.01mm | 108,000.00 |
Features

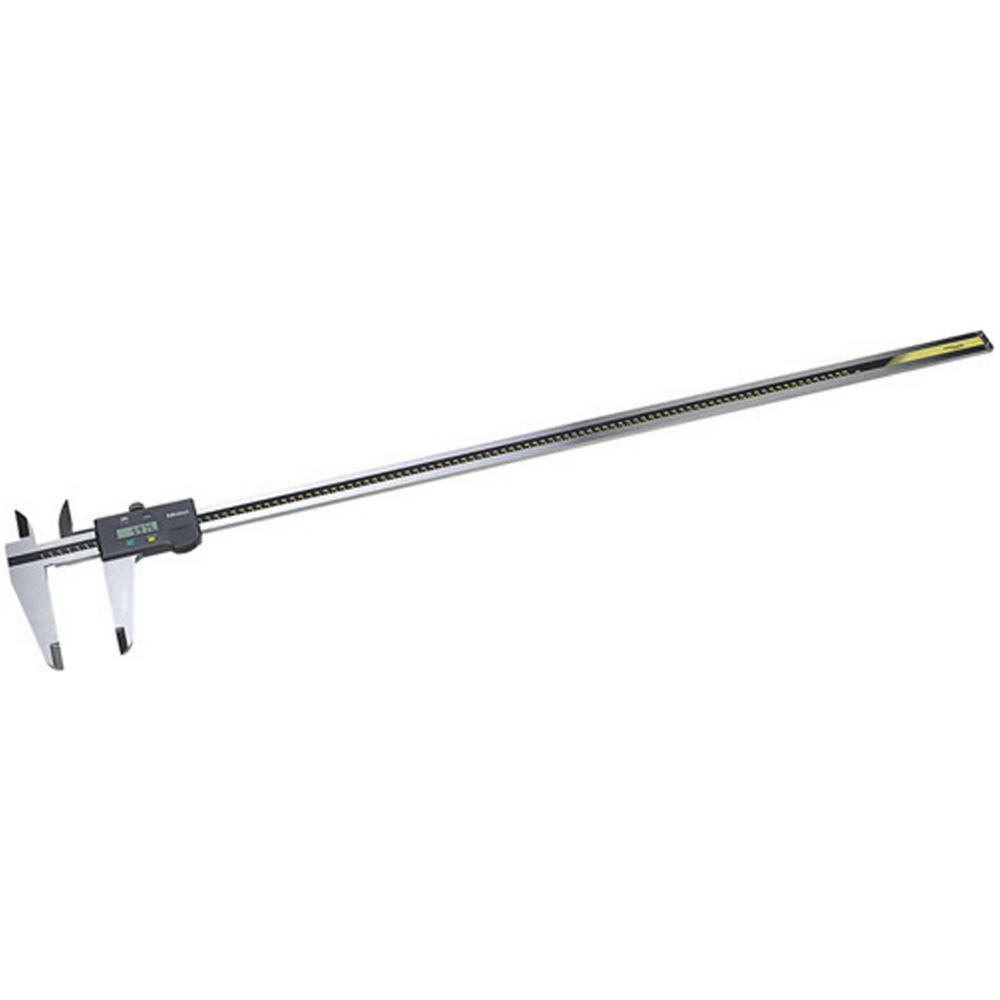

- Long Digital caliper incorporating an ABSOLUTE scale and available with a measuring range from 450 mm to 1 000 mm.
- Allows step measurement
- Allows integration into statistical process control and measurement systems for models
Technical Data
Accuracy: ±0.05 mm (s600 mm), ±0.07 mm (sl 000 mm)
(excluding quantizing error)
Resolution: 0.01 mm or 0.0005 in I 0.01 mm
Repeatability: 0.01 mm
Display: LCD
Scale type: ABSOLUTE electrostatic capacity linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc), 938882,
for initial operational checks (standard accessory)
Battery life: Approx. 3.5 years under normal use
Max. response speed: Unlimited
Function
- Absolute measurement: After power is turned ON,measurement can be started without zero-setting if origin-setting was previously performed. The Absolute origin position can be changed by the ORIGIN button.
- Incremental measurement: Display can be set to zero at any arbitrary position for comparative measurements
- Low-voltage alert: If the battery voltage becomes low, a "B" appears in the display to alert the user before measurement is no longer possible. A battery change advisory alert precedes this alert.
- Data output By using the connecting cable (option), measurement data can be output.
- Data hold: By using the data hold unit (option), the displayed value can be held. This cannot be used with the data output function.
*Certificate of Inspection and Calibration is available by request with for a fee.
