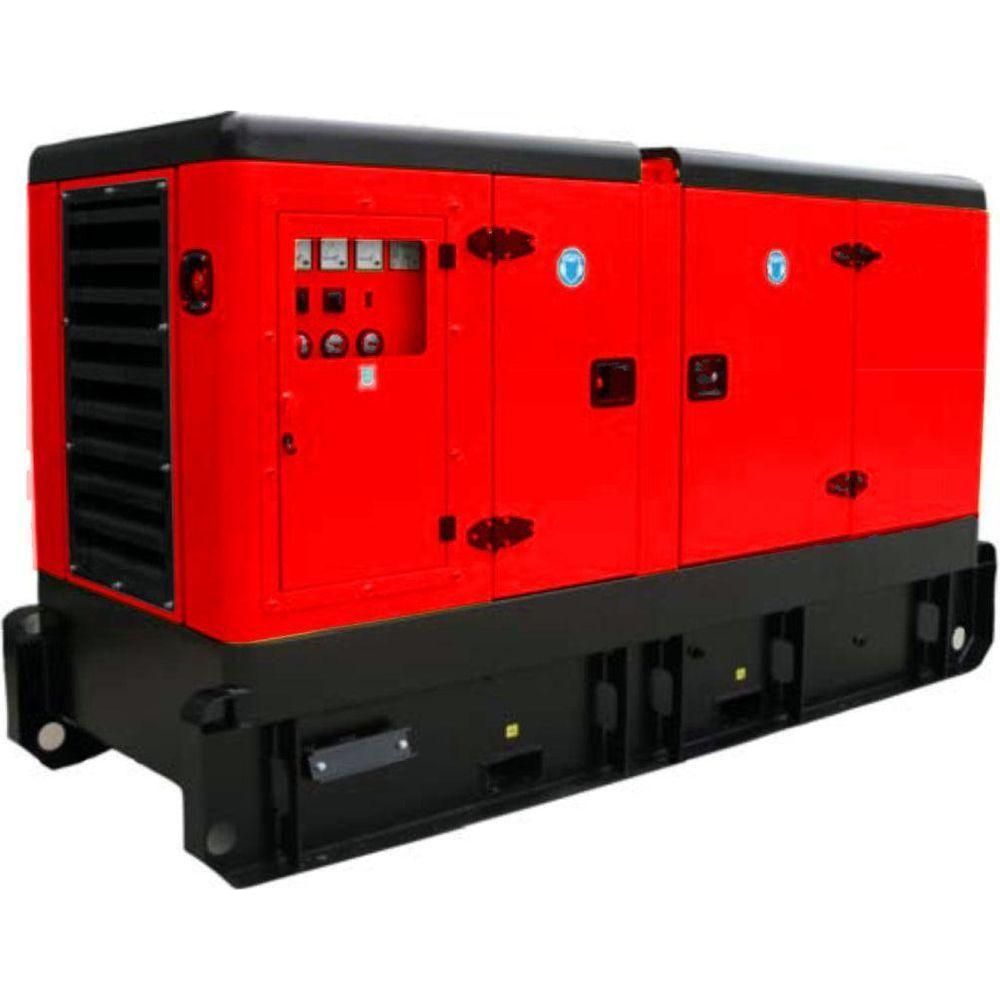

Powerman PMC Cummins Power Generator Silent Type


Model: PMC35000D-S1
Price:
Sale price₱515,000.00

Pickup available at 940 Blumentritt St. Sampaloc

Usually ready in 2-4 days

Description


Powerman PMC Cummins Power Generator Silent Type

Genset Model / Code PMC35000D-S1 PMC35000D-S3
Genset Type Silent Type Silent Type
Prime Power Output 25 kVA / 25 kW 31 kVA / 25 kW
Standby Power Output 27.5 KVa / 27.5 kW 34 KVa / 27.5 kW
Consumption 100% (L/H) 9.4 9.7
dB (A) @ 7m 71 71
Tank (L) 28.2 28.2
Engine Model 4B3.9-G1 483.9-G1
Number of Cylinders 4 4
Cylinder Arrangement In Line In Line
Cycle 4-Stroke 4-Stroke
Aspiration Naturary Naturary
Bore x Stroke (mm x mm) 102 x 120 102 x 120
Displacement (Liter) 3.91 3.91
Compression Ratio 16:05:01 16:05:01
Prime Power / Speed (kW/rpm) 30/1800 30/1800
Stand by Power / Speed (kW/rpm) 33/1800 33/1800
Speed Governor no no
Cooling System Water Cooled Water Cooled
Speed Stability (%) < ± 0.25 % < ± 0.25 %
Total lubrication system capacity (L) 8 8
Coolant capacity (without radiotor) (L) 8 8
Fuel Consumption at 100% Load (g/kWh) <215 <215
Starter Motor 24V 24V
Alternator 24V 24V
Alternator Model HKN184F HKN184F
Exciter Type Brushless, Self-excited Brushless, Self-excited
Power Factor 1 0.8
Voltage Adjust Range ±1.0 % with 4% engine governing
Voltage Regulation NL-FL <2% / <50
Insulation Grade H Class H Class
Protection Grade IP 22 IP 22
Overall Size L x W x H (m) 2.23 x 1 x 1.3 2.23 x 1 x 1.3
Weight 700 kg 700 kg
Price 515,000.00 515,000.00

Genset Model / Code PMC42000D-S1 PMC42000D-S3
Genset Type Silent Type Silent Type
Prime Power Output 30kVa / 30 kW 31 kVA / 25 kW
Standby Power Output 33kVa / 33 kW 34 KVa / 27.5 kW
Consumption 100% (L/H) 9.5 9.7
dB (A) @ 7m 71.5 71
Tank (L) 42.3 28.2
Engine Model 4B3.9-G1 483.9-G1
Number of Cylinders 4 4
Cylinder Arrangement In Line In Line
Cycle 4-Stroke 4-Stroke
Aspiration Turbo Naturary
Bore x Stroke (mm x mm) 102 x 120 102 x 120
Displacement (Liter) 3.91 3.91
Compression Ratio 16:05:01 16:05:01
Prime Power / Speed (kW/rpm) 40/1800 30/1800
Stand by Power / Speed (kW/rpm) 44/1800 33/1800
Speed Governor no no
Cooling System Water Cooled Water Cooled
Speed Stability (%) < ± 0.25 % < ± 0.25 %
Total lubrication system capacity (L) 8 8
Coolant capacity (without radiotor) (L) 8 8
Fuel Consumption at 100% Load (g/kWh) <215 <215
Starter Motor 24V 24V
Alternator 24V 24V
Alternator Model HKN184G HKN184G
Exciter Type Brushless, Self-excited Brushless, Self-excited
Power Factor 1 0.8
Voltage Adjust Range ±1.0 % with 4% engine governing
Voltage Regulation NL-FL <2% / <50
Insulation Grade H Class H Class
Protection Grade IP 22 IP 22
Overall Size L x W x H (m) 2.23 x 1 x 1.3 2.23 x 1 x 1.3
Weight 830 kg 830 kg
Price 555,000.00 555,000.00



Genset Model / Code PMC55000D-S1 PMC55000D-S3
Genset Type Silent Type Silent Type
Prime Power Output 40kVa / 40 kW 50 kVA / 40 kW
Standby Power Output 44kVa / 44 kW 55 KVa / 44 kW
Consumption 100% (L/H) 14 14
dB (A) @ 7m 72 72
Tank (L) 62 62
Engine Model 4BTA3.9-G2 4BTA3.9-G2
Number of Cylinders 4 4
Cylinder Arrangement In Line In Line
Cycle 4-Stroke 4-Stroke
Aspiration Turbo & After cooled Turbo & After cooled
Bore x Stroke (mm x mm) 102 x 120 102 x 120
Displacement (Liter) 3.91 3.91
Compression Ratio 16:05:01 16:05:01
Prime Power / Speed (kW/rpm) 60/1800 60/1800
Stand by Power / Speed (kW/rpm) 65/1800 65/1800
Speed Governor yes yes
Cooling System Water Cooled Water Cooled
Speed Stability (%) < ± 0.25 % < ± 0.25 %
Total lubrication system capacity (L) 11 11
Coolant capacity (without radiotor) (L) 8 8
Fuel Consumption at 100% Load (g/kWh) <215 <215
Starter Motor 24V 24V
Alternator 24V 24V
Alternator Model - -
Exciter Type Brushless, Self-excited Brushless, Self-excited
Power Factor 1 0.8
Voltage Adjust Range ±1.0 % with 4% engine governing
Voltage Regulation NL-FL <2% / <50
Insulation Grade H Class H Class
Protection Grade IP 22 IP 22
Overall Size L x W x H (m) 2.28 x 1 x 1.3 2.28 x 1 x 1.3
Weight 1060 kg 1060 kg
Price 668,000.00 668,000.00


Genset Model / Code PMC75000D-S1
 (MCM-60S-2)
PMC75000D-S3
(MCM-60S-2)
Genset Type Silent Type Silent Type
Prime Power Output 55kVa / 55kW 68 kVA / 55 kW
Standby Power Output 60kVa / 60 kW 75 KVa / 60 kW
Consumption 100% (L/H) 15.8 15.8
dB (A) @ 7m 70 70
Tank (L) 200 200
Engine Model 4BTA3.9-G2 483.9-G2
Number of Cylinders 4 4
Cylinder Arrangement Vertical In Line Vertical In Line
Cycle 4-Stroke 4-Stroke
Aspiration Turbo charged Turbo charged
Bore x Stroke (mm x mm) 102 x 120 102 x 120
Displacement (Liter) 3.9 3.9
Compression Ratio 16:05:01 16:05:01
Prime Power / Speed (kW/rpm) 60/1800 60/1800
Stand by Power / Speed (kW/rpm) 65/1800 65/1800
Speed Governor Electrical Electrical
Cooling System Water Cooled
40 celcius Radiator
Water Cooled
40 celcius Radiator
Speed Stability (%) < 5% < 5%
Total lubrication system capacity (L) 11 11
Coolant capacity (without radiotor) (L) 7.9 7.9
Fuel Consumption at 100% Load (g/kWh) 220 (at 1800 rpm)
Starter Motor DC24V DC24V
Alternator AC24V AC24V
Alternator Model HK224E-1 HK224E-3
Exciter Type Brushless, Self-excited Brushless, Self-excited
Power Factor 1 0.8
Voltage Adjust Range <5 %
Voltage Regulation NL-FL < ±0.5 %
Insulation Grade H Class H Class
Protection Grade IP 23 IP 23
Overall Size L x W x H (m) 2.28 x 1 x 1.3 2.28 x 1 x 1.3
Weight 1060 kg 1060 kg
Price 668,000.00 668,000.00

Genset Model / Code PMC125000D-S1 (MCM100S-2A) PMC125000D-S3 (MCM100S-2A)
Genset Type Silent Type Silent Type
Prime Power Output 91kVa / 91kW 114 kVA / 91 kW
Standby Power Output 100kVa / 100 kW 125 KVa / 100 kW
Consumption 100% (L/H) 26.3 26.3
dB (A) @ 7m 70 70
Tank (L) 300 300
Engine Model 6BT5.9-G1 6BT5.9-G1
Number of Cylinders 6 6
Cylinder Arrangement Vertical In Line Vertical In Line
Cycle 4-Stroke 4-Stroke
Aspiration Turbo charged Turbo charged
Bore x Stroke (mm x mm) 102 x 120 102 x 120
Displacement (Liter) 5.9 5.9
Compression Ratio 17.5:1 17.5:1
Prime Power / Speed (kW/rpm) 105 / 1800 105 / 1800
Stand by Power / Speed (kW/rpm) 115 / 1800 115 / 1800
Speed Governor Mechanical Mechanical
Cooling System Water Cooled
40 celcius Radiator
Water Cooled
40 celcius Radiator
Speed Stability (%) < 5% < 5%
Total lubrication system capacity (L) 16.4 16.4
Coolant capacity (without radiotor) (L) 9.1 9.1
Fuel Consumption at 100% Load (g/kWh) 221 (at 1800 rpm)
Starter Motor DC24V DC24V
Alternator AC24V AC24V
Alternator Model HK274C-1 HK274C-3
Exciter Type Brushless, Self-excited Brushless, Self-excited
Power Factor 1 0.8
Voltage Adjust Range <5 %
Voltage Regulation NL-FL < ±0.5 %
Insulation Grade H Class H Class
Protection Grade IP 23 IP 23
Overall Size L x W x H (m) 2.73 x 1.06 x 1.48 2.73 x 1.06 x 1.48
Weight 1478 kg 1478 kg
Price 800,000.00 800,000.00
