Description

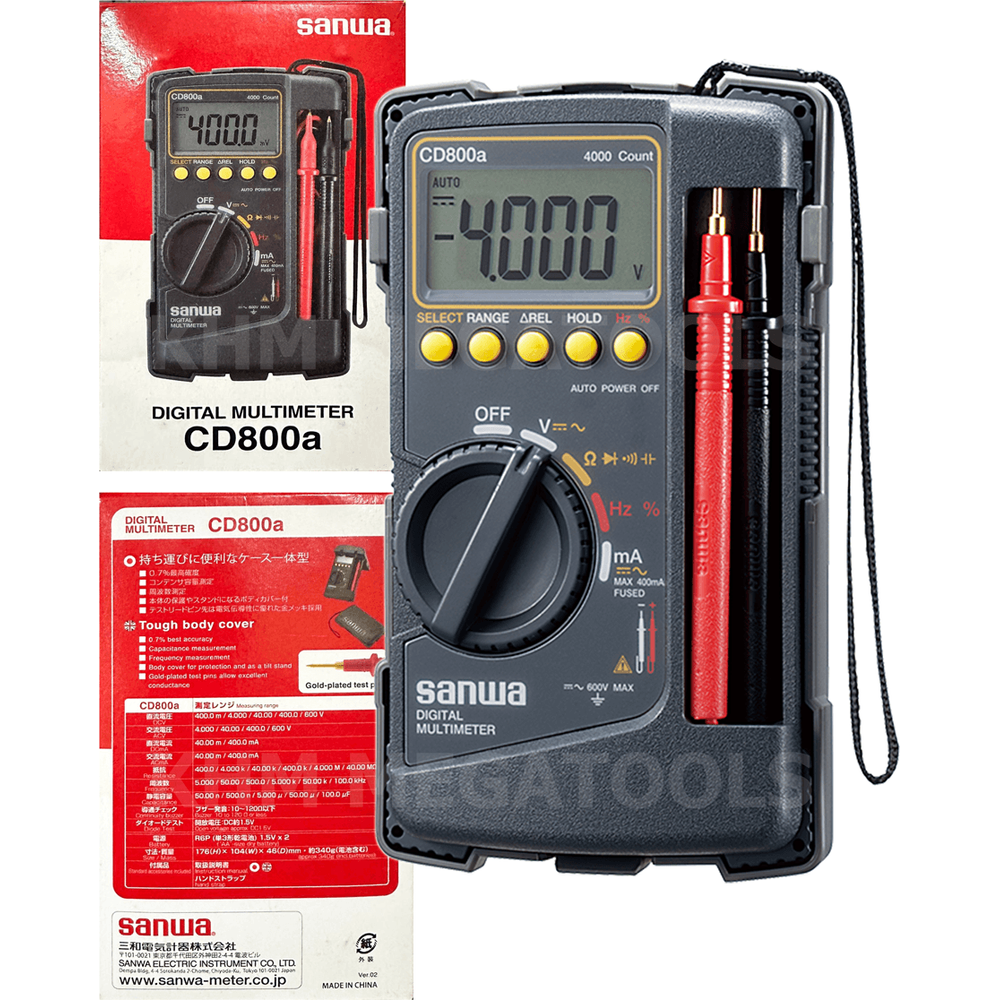

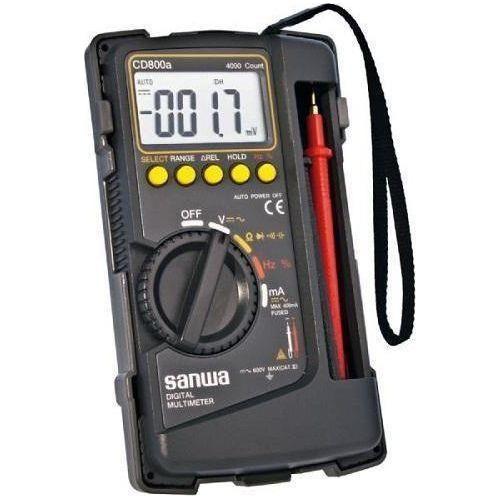

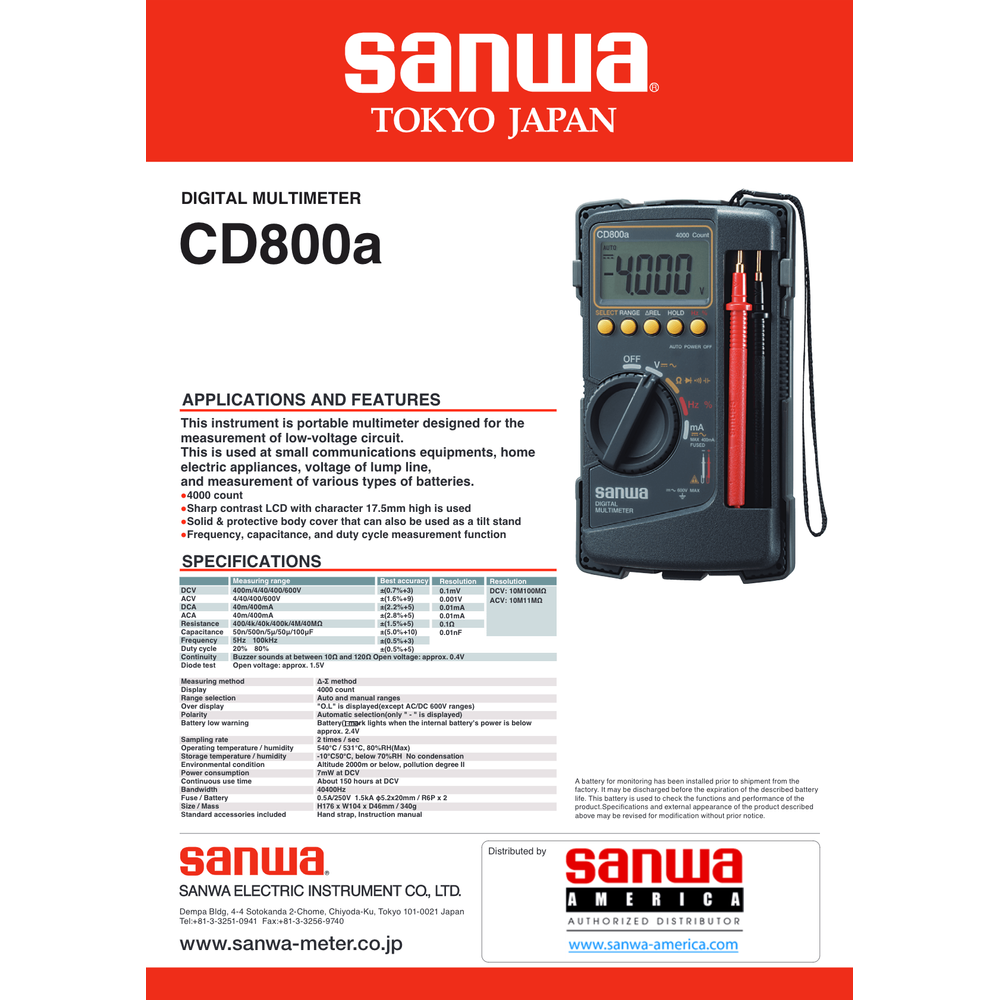

ALL-IN-ONE DMM

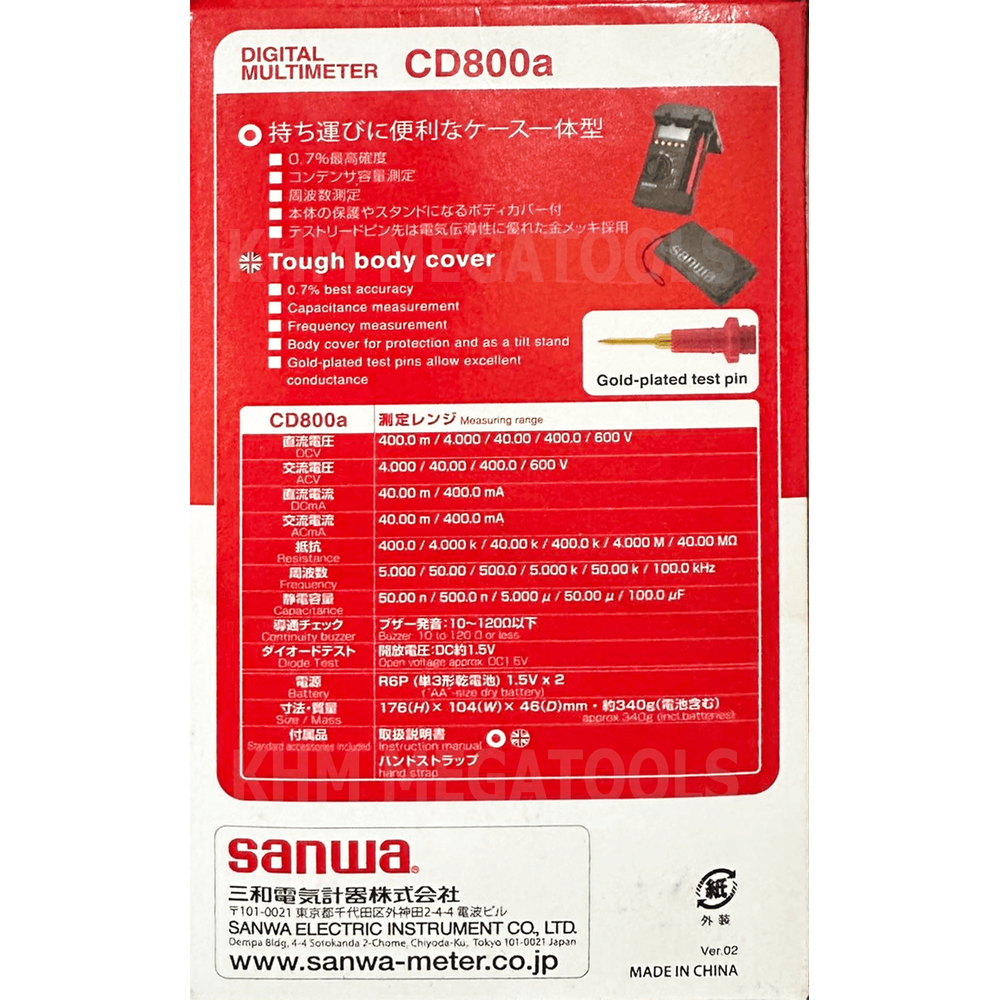

Tough body cover
■3-3 / 4 digits 4000 count
■0.7% best accuracy
■Capacitance measurement
*Not suitable for measurement of condensers with large leak current.
■Frequency measurement (AC sine wave only)
■Data hold / Range hold
■Relative value
■Auto power off (30min.) (cancelable)
■Low power ohm (input voltage 0.4V) at continuity range
■Solid & protective body cover that can also be
used as a tilt stand
■Chip holder behind the body cover
Display : numeral display 4000
Sampling rate : 3 times / sec.
AC frequency bandwidth : 40～400Hz
| CD800a | Measuring Range | Best Accuracy | Resolution | Input Impedance |
| DCV | 400m/4/40/400/600V | ± (0.7%+3) | 0.1mV | DCV: |
| ACV | 4/40/400/600V | ± (1.6%+9) | 0.001V | 10M～ |
| DCA | 40m/400mA | ± (2.2%+5) | 0.01mA | 100MΩ |
| ACA | 40m/400mA | ± (2.8%+5) | 0.01mA | ACV: |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ± (1.5%+5) | 0.1Ω | 10M～ |
| Capacitance | 50n/500n/5μ/50μ/100μF | ± (5%+10) | 0.01nF | 11MΩ |
| Frequency | 5Hz～100kHz | ± (0.5%+3) | ||
| Duty Cycle | 20%～80% | ± (0.5%+5) | ||
| Continuity | Buzzer sounds at between 10Ω and 120Ω. Open voltage : approx. 0.4V | |||
| Diode Test | Open voltage : approx. 1.5V | |||
| Bandwidth | 40～400Hz | |||
| Fuse / Battery | 0.5A/250V 1.5kA φ5.2×20 ceramic | |||
| Size / Mass | H176×W104×D46mm/approx. 340g | |||

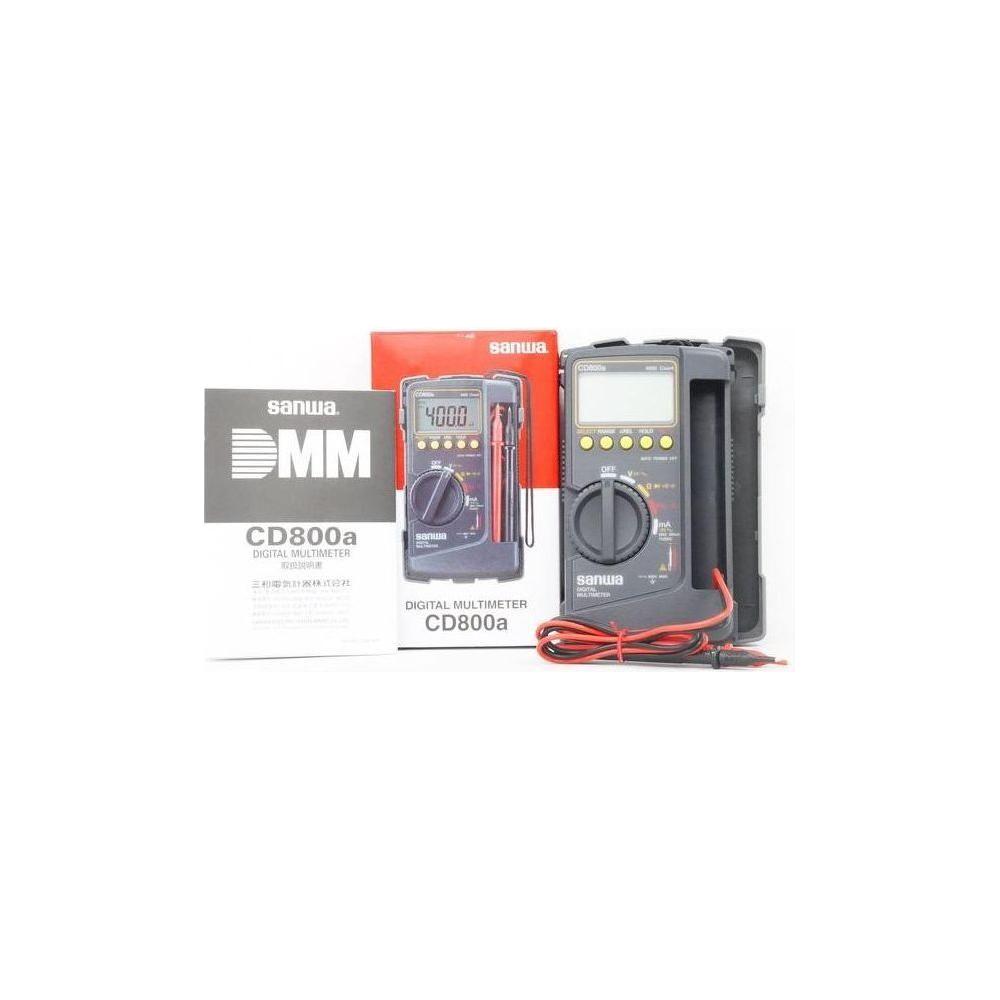

| Standard accessories included | Hand strap , Instruction manual | |||
