ORIGINAL 100% Genuine
Beware of Fake
Made in Japan

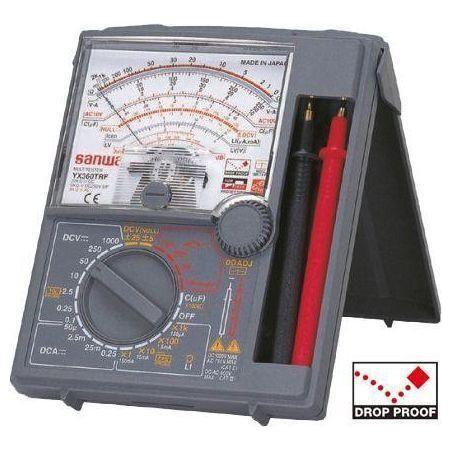

Best seller drop shock proof meter
- Drop shock proof meter
- Null (zero center) meter ±5 / ±25 in DCV
- High resistance up to 200MΩ with low voltage
- Protective body cover
- Capacitance, dB, Li measurement
Bandwidth : 30～100kHz (AC10V)
hFE probe : HFE-6T
Clip adapter : CL-11, CL-15a, CL-DG3a, TL-8IC
High voltage probe : HV-10T
|DCV||0.1V (20kΩ / V)||±5% of full scale|
|(NULL)||0.25 / 2.5 / 10 / 50 (20kΩ / V) / 250 / 1000V(9kΩ / V)||±3% of full scale|
|±5 / 25V (40kΩ / V)||±5% of full scale|
|ACV||10 / 50 / 250 / 750V (9kΩ / V)||±4% of full scale|
|Resistance||2k / 20k / 200k / 2MΩ (X1 / X10 / X100 / X1k)||±3% of arc|
|200MΩ (X100k)||±5% of arc|
|Load current (LI) 0～150m / 15m / 1.5m / 150μ / 1.5μA|
|dB||-10dB～+22dB (for 10VAC) ～+62dB||-|
|DC high voltage||DC25kV (optional probe "HV-10T" is necessary)||-|
|hFE||1000 at ×10 range (optional probe "HFE-6T" is necessary)||-|
|Battery||R6 (IEC) or UM-3(1.5V)×2|
|Fuse||φ5.2×20mm (250V / 0.5A)|
|Size / Mass||H159.5×W129×D41.5mm / approx. 320g|
|Standard accessories||Instruction manual, Hand strap|
|The value in bracket at DCV and ACV is input resistance.|
|*1 Not including the resistance of fuse.|
|*2 Pointer indication of the maximum move by charged current in the capacitor|
