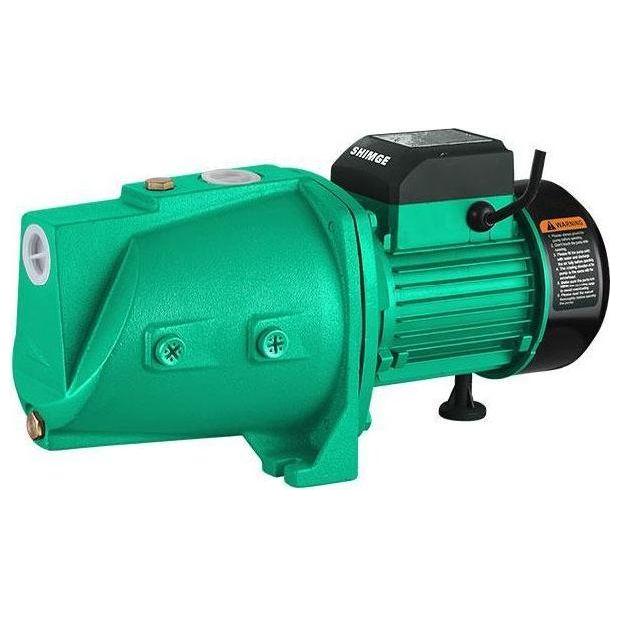

Description
Shimge Pump Ltd is a famous China pump manufacturer, offering pump products for agricultural, industrial, commercial, residential areas.
100% Copper
Thermally-Protected
Applications Fields
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
- Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc.
Features
- Complete models
- Copper impeller, stainless steel pump cover
- Pump body with installation foot set
Motor
- Single-Phase 220V/50Hz
- Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
- Protection: IP44
- Insulation: Class B

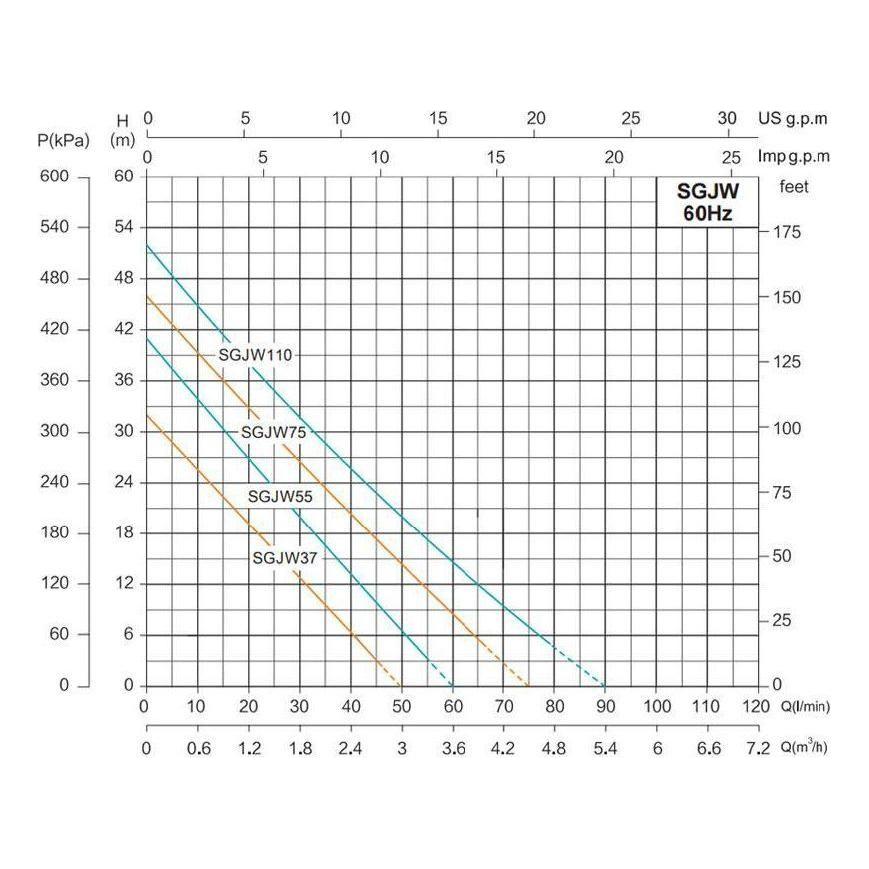

Specifications
| Model | SGJW37 | SGJW55 | SGJW75 |
| Rated Power (HP) |
0.5 | 0.8 | 1 |
| Rated Voltage (V/Hz) |
220/60 | 220/60 | 220/60 |
| Max Head (m) |
32 | 41 | 46 |
| Max Flow (m3/h) |
3 | 3.6 | 4.5 |
| Head Range (m) |
2.5-32m | 3-41m | 4.5-46m |
| Max Suction (m) |
9 | 9 | 9 |
|
PRICE |
4,275.00 | 5,175.00 | 6,075.00 |
|
Model |
Price |

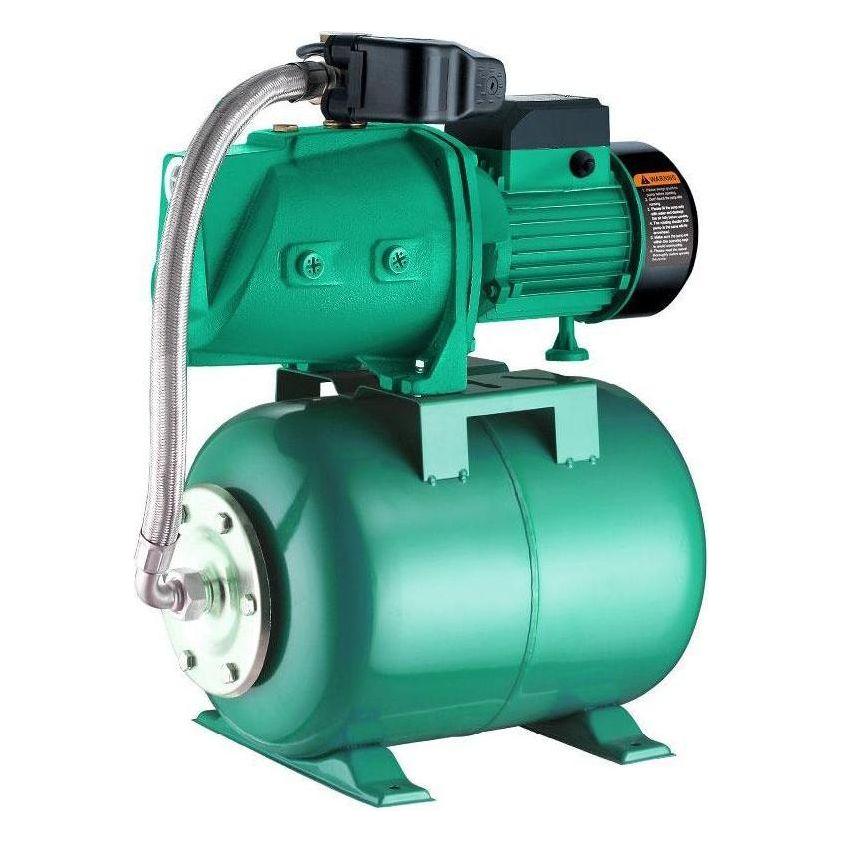

| SGJW37 + 24L Bladder Tank | 7,200.00 |
| SGJW55 + 24L Bladder Tank | 8,100.00 |
| SGJW75 + 24L Bladder Tank | 9,000.00 |
Application Limits
- Suction head up to 9m
- Liquid temperature up to +40C
- Ambient temperature up to +40C
- Max. Working pressure: 6bar
- Voltage fluctuation should not exceed 10%of rated value.
- pH: 6.5 to 8.5
