The state of the art electronic pressure controlsystem allows ideal atomization under all conditions.
The long-duty piston pump and direct gear drive are built for the long haul.
The fully enclosed brushless motors are built for ample power and heavy-duty cycles all day long. There is sufficient power to run two guns if desired.
The quick-change pump filter is easy to access and clean.
All aspects of the machines were carefully designed for convenience and speed of maintenance and cleaning.
This all adds up to the excellent results which professionals demand.

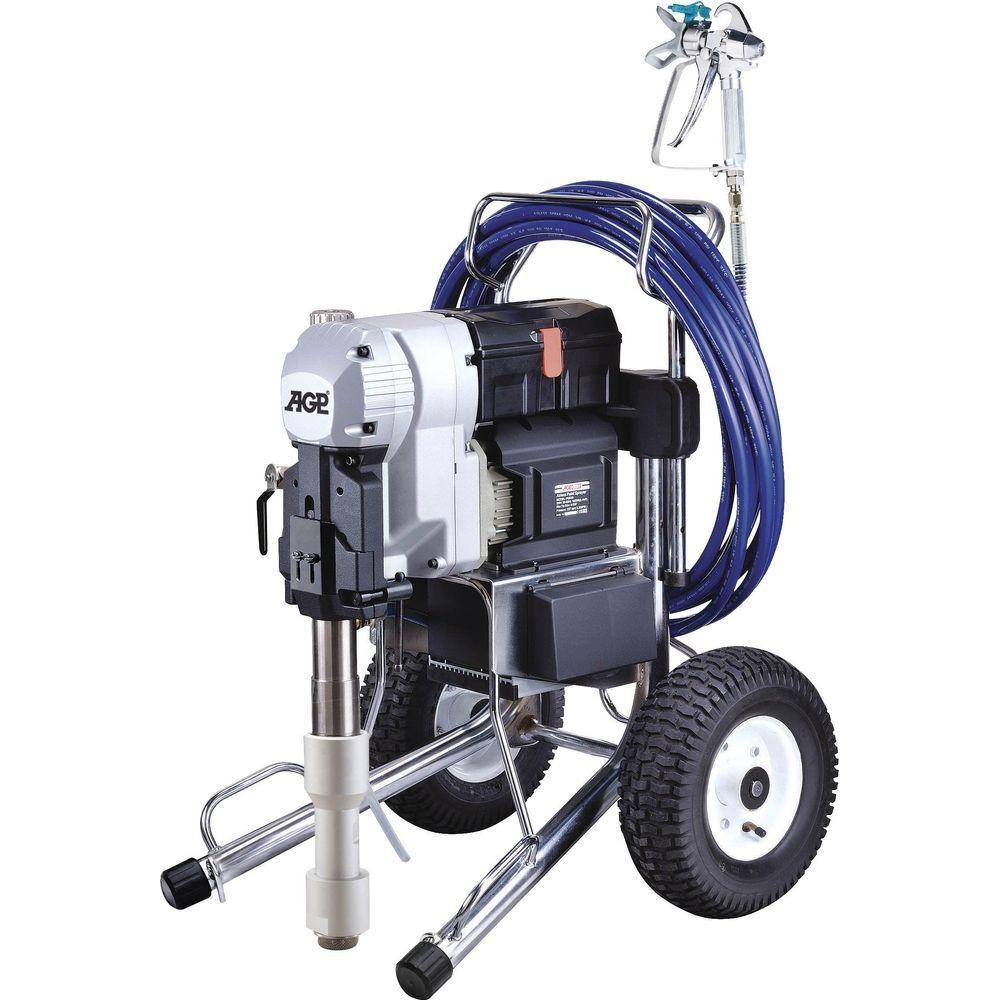

The PM039 can handle a very wide range of paint types, These are our most powerful sprayers and they can
be even be used as texture sprayers.
The powerful piston pump is able to spray and hydraulically atomize almost any thickness material as long as
it does not contain solid particles such as sand, stones, etc.
The PM039 is specially equipped for plaster, skim coat and texture materials: It comes standard with a special
plaster type suction assembly with low-mounted spring assisted check ball for easy priming.
It also has a ball-type priming valve for increased flow.
knockdown and splatter.
|Motor Type||Brushless DC Motor|
|Voltage||220-240V~ 50-60Hz or 110-120V~ 50-60Hz|
|Max. Tip Size||0.039"|
|Max. Fluid Flow||6.4 l/min (1.7 gpm)|
|Max. Pressure||227 bar (3,300 psi)|
|Net Weight||61.1kg (134.7 Lbs)|
- Hose 3/8" x 50' (15.5M) + Whip Hose1/4" x1.5M x1
- Gun With Tip Guard and Tip (0.035") x1
- Inlet strainer 20 Mesh x1
- Pump Filter W/ One Each 60 &100 Mesh x1
- Special Multi-Purpose Wrench x1
- Throat Seal Oil (100ml Squeeze Bottle) x1
- Tommy Bar x1
